Technical Design Document

stealth-send-swap.md

Description

Asana task

When a Stealth toggle cannot arm, it now shows dimmed and off with the reason under it, instead of hiding or arming until the first quote fails. The saved choice never changes because of this. It comes back on its own once the user picks an asset or pair Stealth can route.

Send scene:

• Reasons: an asset Houdini does not serve, an asset the info server bans for Houdini on that side (sending or receiving, as on the Exchange scene), no private route to itself, below the 25 USD private minimum, or a refused route.
• The reason shows on plain sends too. This reverses EdgeApp/edge-react-gui#6270, which left a plain send's toggle unexplained.
• A tap toasts the reason, does not arm, and saves nothing.
• The saved choice or the stealth=true link param arms again when the wallet, token, or recipient asset becomes eligible. It also arms again when the reason clears with no pick in between, such as an amount raised past the minimum. An armed toggle turns off (without saving) when the source asset is picked back as the recipient with no private route to itself.
• With Stealth on and the amount below the minimum, the message stays in the quote error card. The line under the toggle shows only while the toggle is off.

Swap scene:

• A pair is blocked when either side is unserved or banned for Houdini by the info server. The reason uses stealth_asset_unsupported_1s and names the failing side, the sending side first.
• With Stealth on, each picker leaves out the assets the info server bans for Houdini on that side: the from picker drops source bans, the to picker drops destination bans.
• Effective stealth is (override ?? saved) && list loaded && not blocked. When blocked, the toggle is dimmed and off with the reason, a tap toasts it, and nothing is saved. No route is probed before the quote.

Tests: updates the EdgeApp/edge-react-gui#6253 and EdgeApp/edge-react-gui#6270 cases and adds dimmed-state UI tests for both scenes. Docs: corrects section 4.6 of exchange-deep-links.md and describes the dimmed toggle in stealth-send-swap.md.

Out of scope: narrowing the edge://send?stealth=true wallet picker.

On the iOS simulator, Stealth Send saved on with BTC, then a send from ARRR showed the toggle dimmed with "Stealth routing is not available for ARRR." A tap toasted it without arming, and BTC still showed the toggle armed afterward. The Swap frames used a local, uncommitted Houdini ban on Litecoin to reach the blocked state, because the swap picker hides unserved assets.

After review: an RBTC send to a RIF recipient at 5 USD showed the toggle off with the minimum reason, and raising the amount to 30 USD armed it again. With a local, uncommitted Houdini source ban on LTC, a send from LTC showed the toggle dimmed with "Stealth routing is not available for LTC.", the Stealth Swap from picker left LTC out, and the to picker kept it.

CHANGELOG

Does this branch warrant an entry to the CHANGELOG?

• Yes
• No

Dependencies

none

Requirements

If you have made any visual changes to the GUI. Make sure you have:

• Tested on iOS device
• Tested on Android device
• Tested on small-screen device (iPod Touch)
• Tested on large-screen device (tablet)

---

Note

Medium Risk
Changes Stealth Send/Swap eligibility, seeding, and toggle UX across send and swap flows, including deep-link arming behavior, though mostly presentation and guardrails without altering successful routing paths.

Overview
Stealth Send and Stealth Swap toggles now appear dimmed and off with an inline reason when routing cannot work, instead of looking enabled until a quote fails or leaving plain sends unexplained.

On Send, blocked cases (unsupported asset, no private same-asset route, below the private minimum, or a refused route) show the reason under the toggle; taps toast the same text without arming or changing the saved preference. Seeding re-runs on recipient-asset changes, turns Stealth off when picking the source asset back with no private route, and re-arms from saved/stealth=true when the wallet, token, or pair becomes eligible. Once Stealth is on, minimum errors stay on the quote card only.

On Swap, effective Stealth is gated by Houdini serve-list and per-side info-server bans via new isStealthRoutable; blocked pairs use stealth_asset_unsupported_1s, dim the switch, and still allow a normal swap on Max/Next. Docs and CHANGELOG reflect the UX and deep-link behavior.

^{Reviewed by Cursor Bugbot for commit 9a0ecec. Bugbot is set up for automated code reviews on this repo. Configure here.}

Test evidence

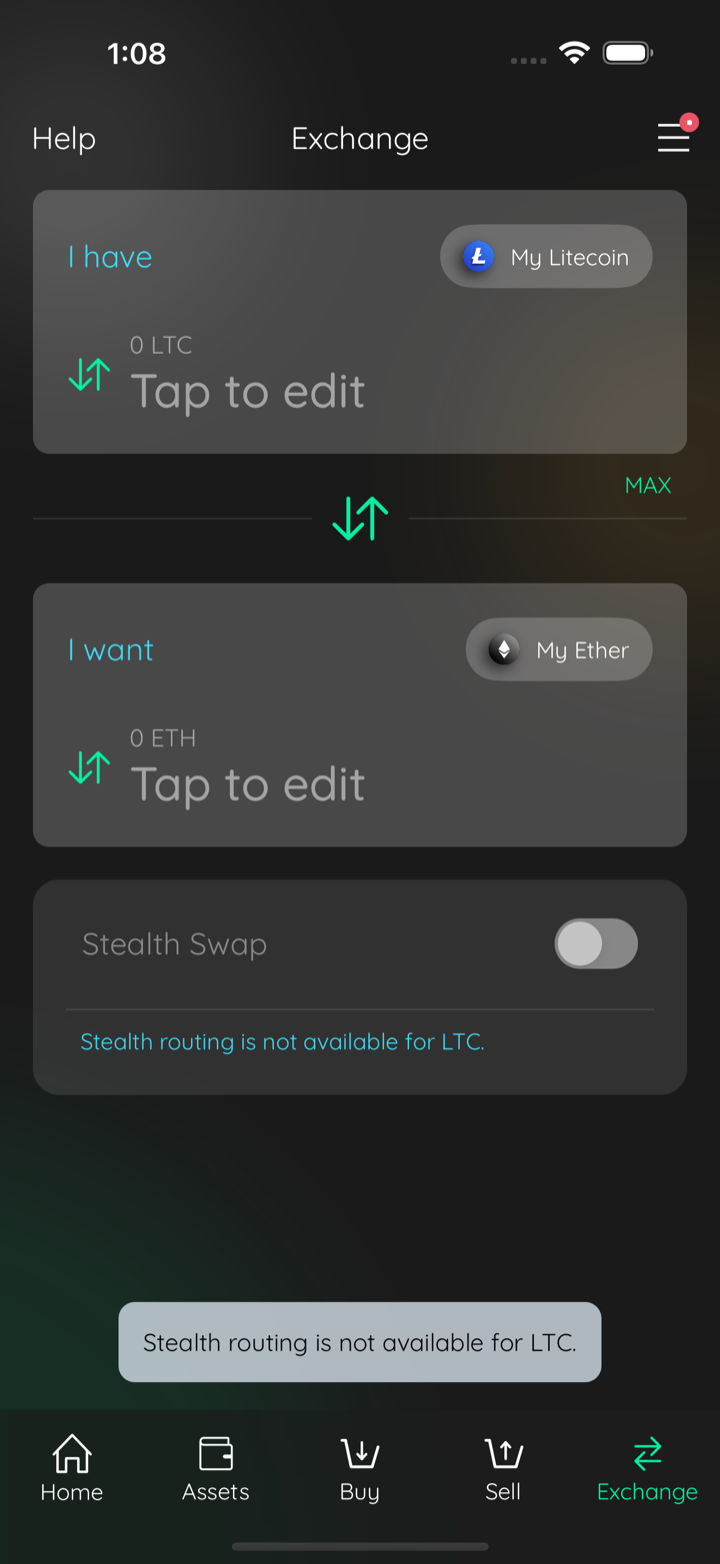

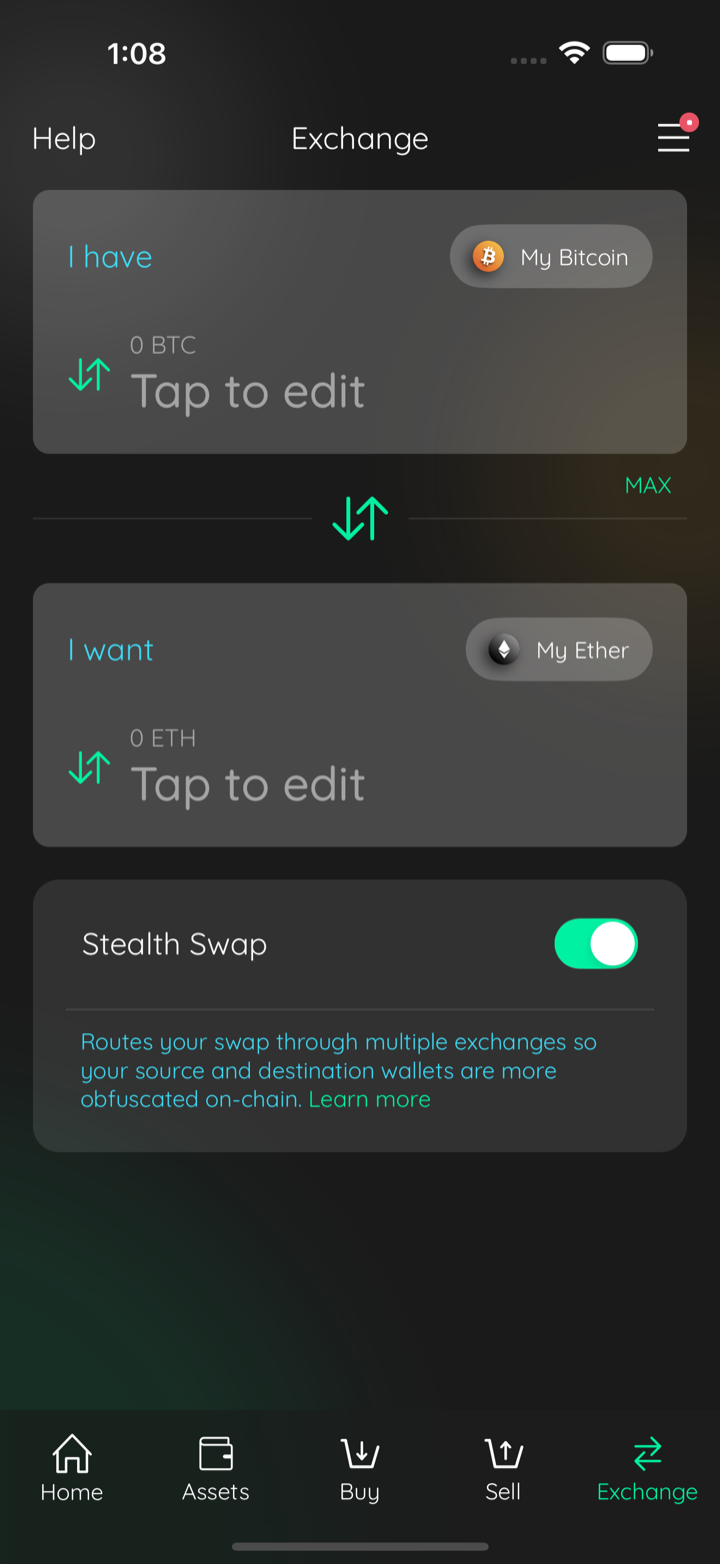

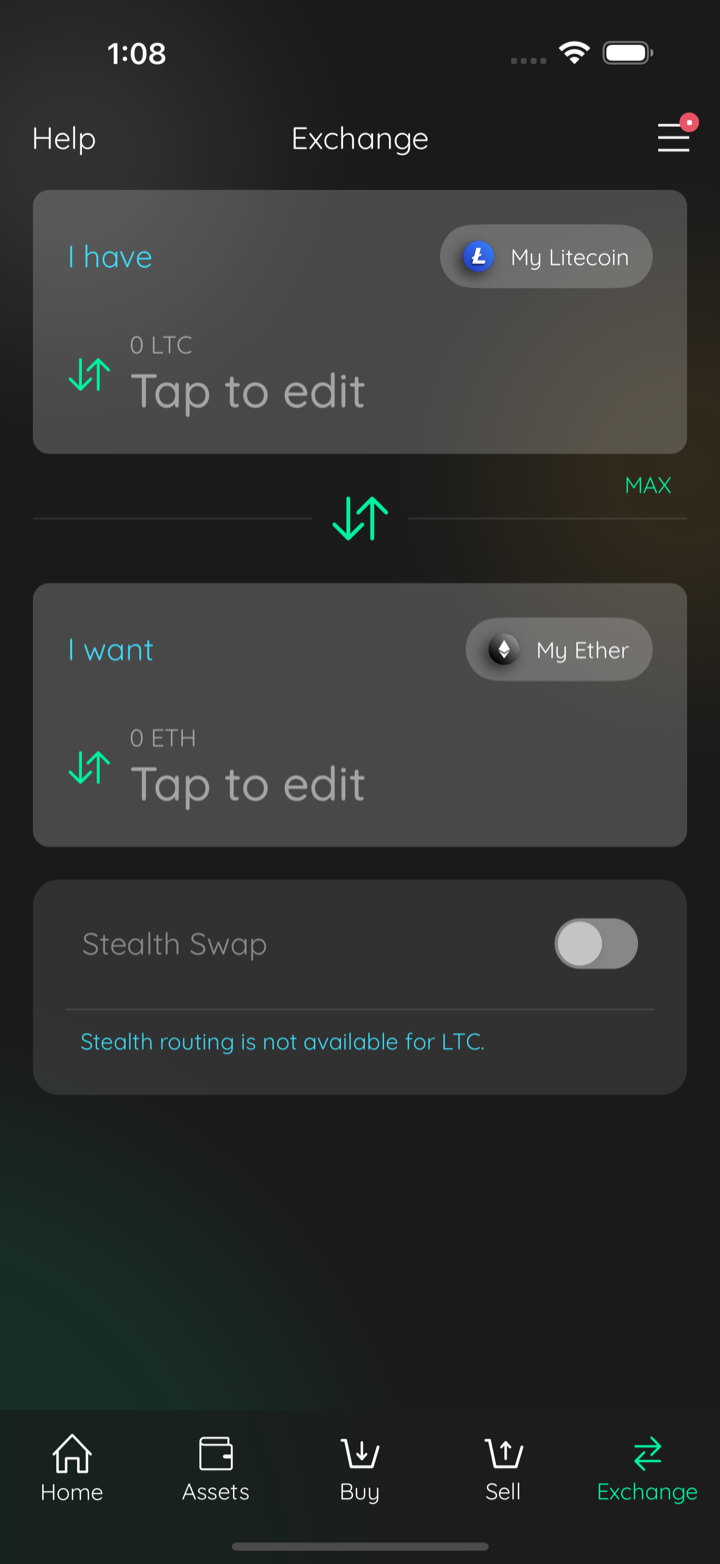

fd0fda8 2026-10-21 🪓 Local uncommitted edit injected a Houdini source ban on litecoin into SwapCreateScene's disableAssetsByPlugin input	5. swap btc eth stealth saved on	6. 🪓 swap ltc banned source dimmed with reason	7. 🪓 swap ltc tap toasts reason

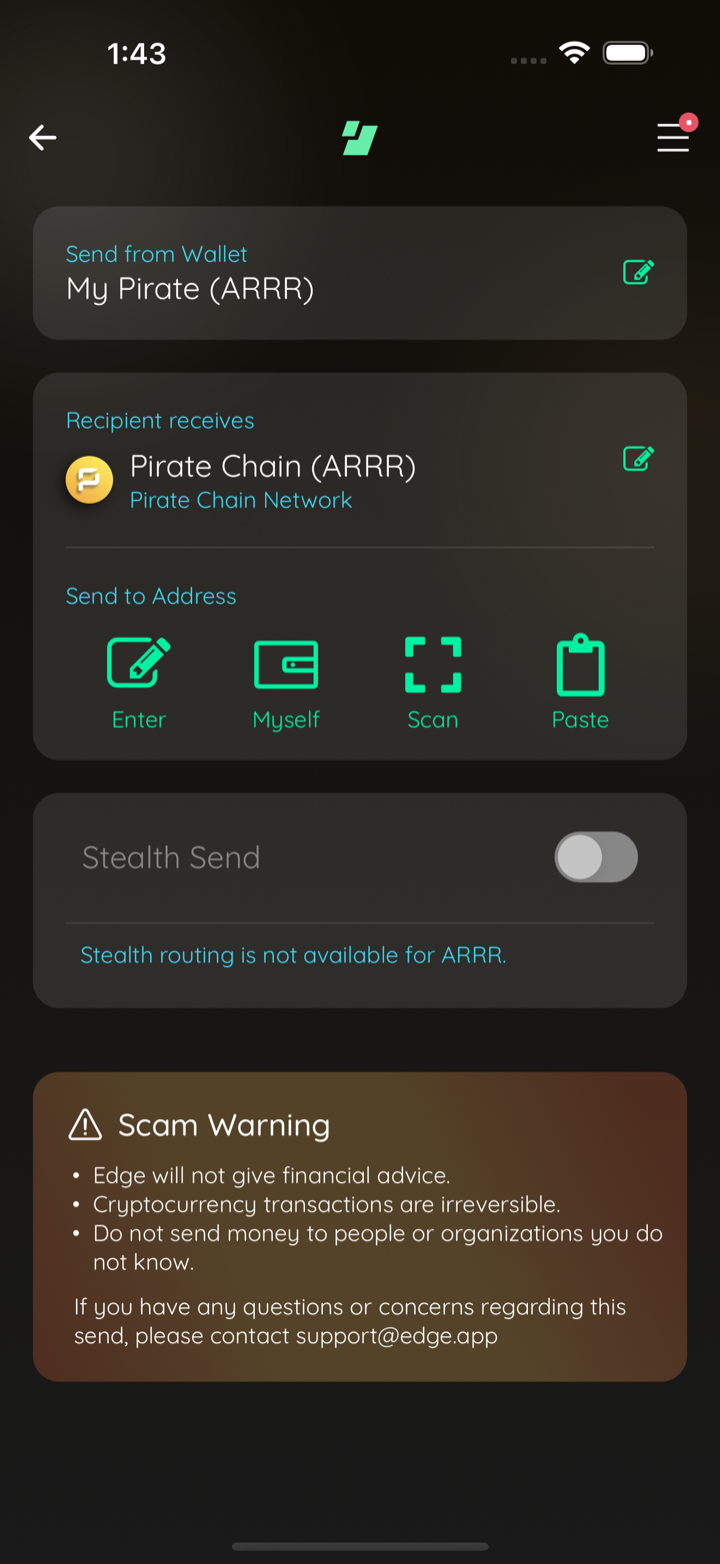

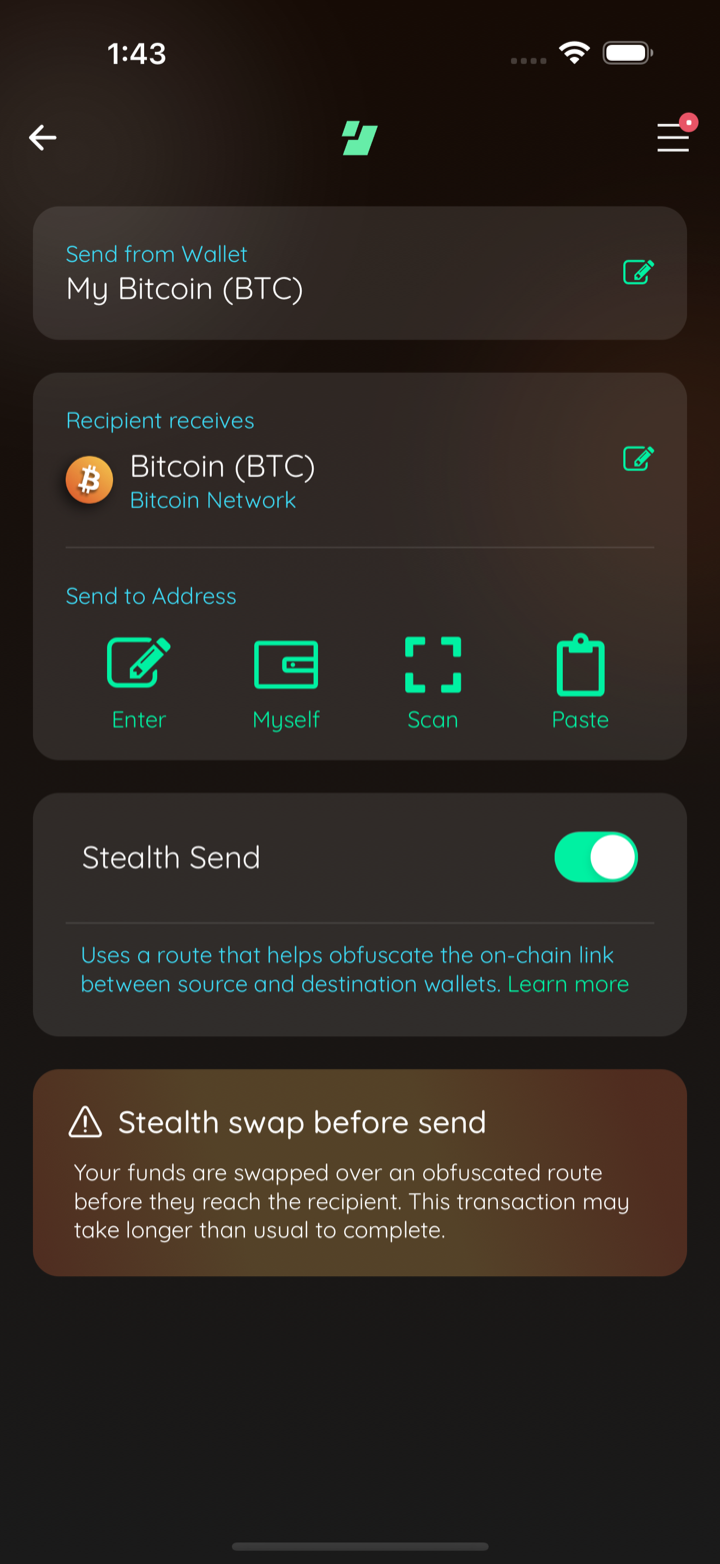

	8. 🪓 swap btc saved choice returns	1. send btc stealth saved on	2. send arrr dimmed with reason

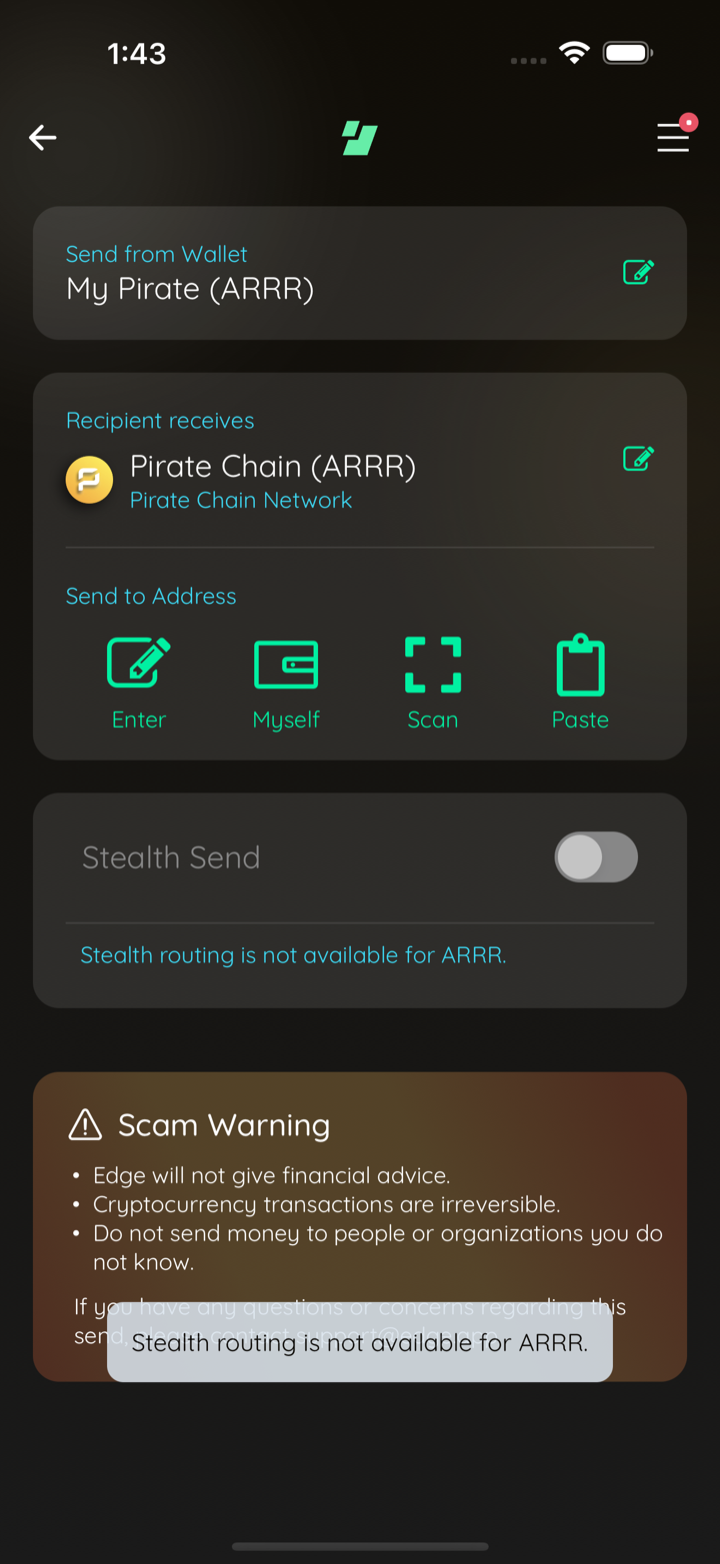

	3. send arrr tap toasts reason	4. send btc saved choice kept

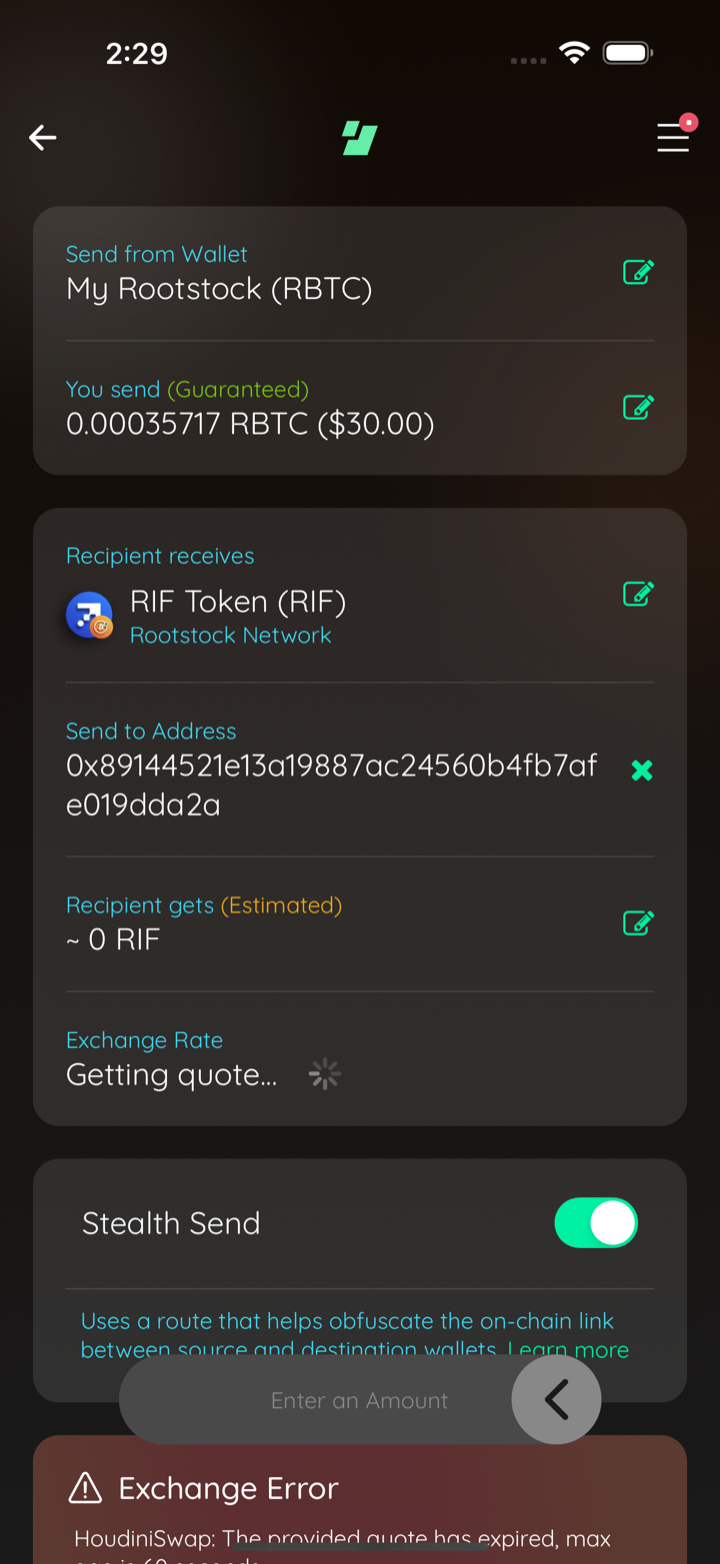

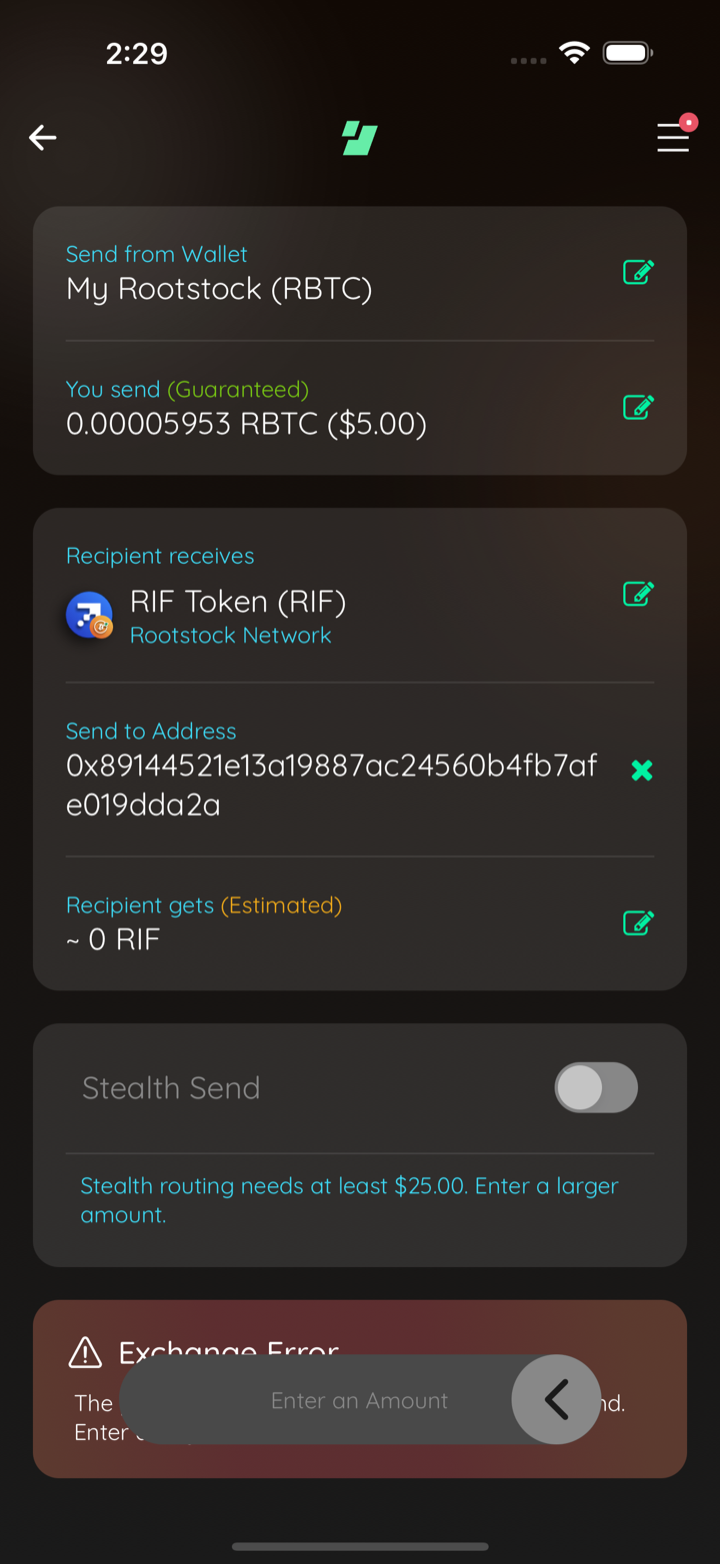

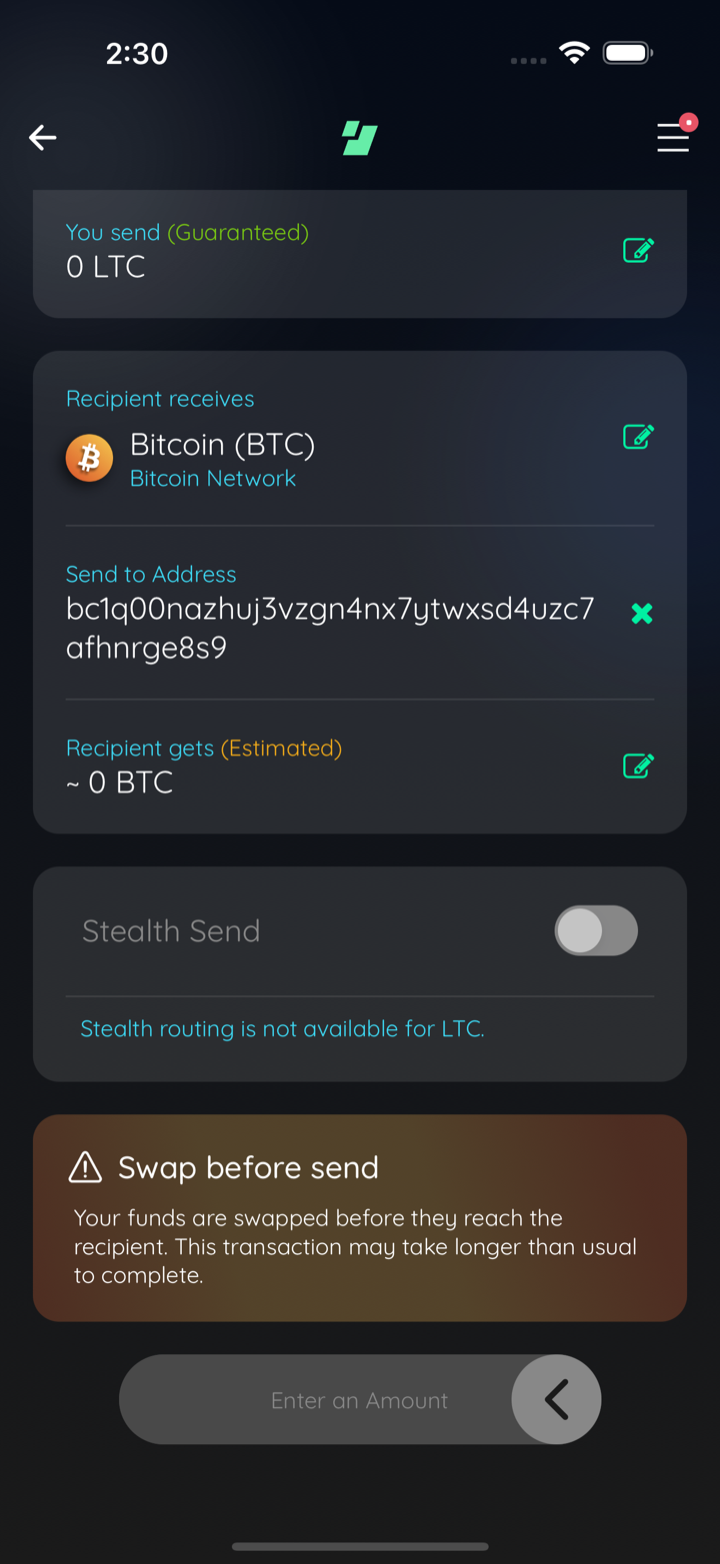

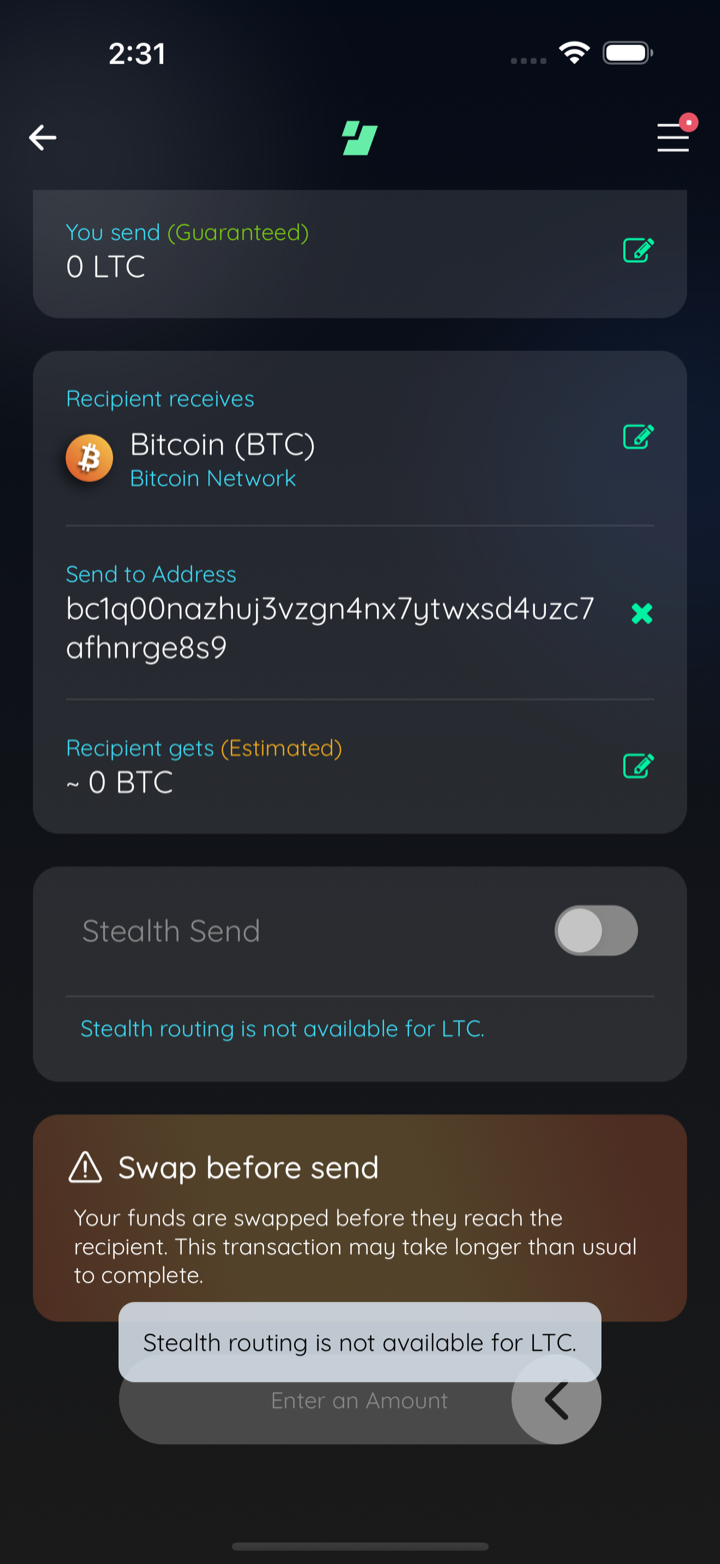

98f23fb fixup! Update Stealth docs for the dimmed toggle 2026-10-21 🪓 Local uncommitted edit to getStealthDisableAssets returned a Houdini ban on LTC as a source.	9. send rbtc rif held off under private minimum	10. send rbtc rif arms again at 30	11. 🪓 send ltc banned source dimmed with reason

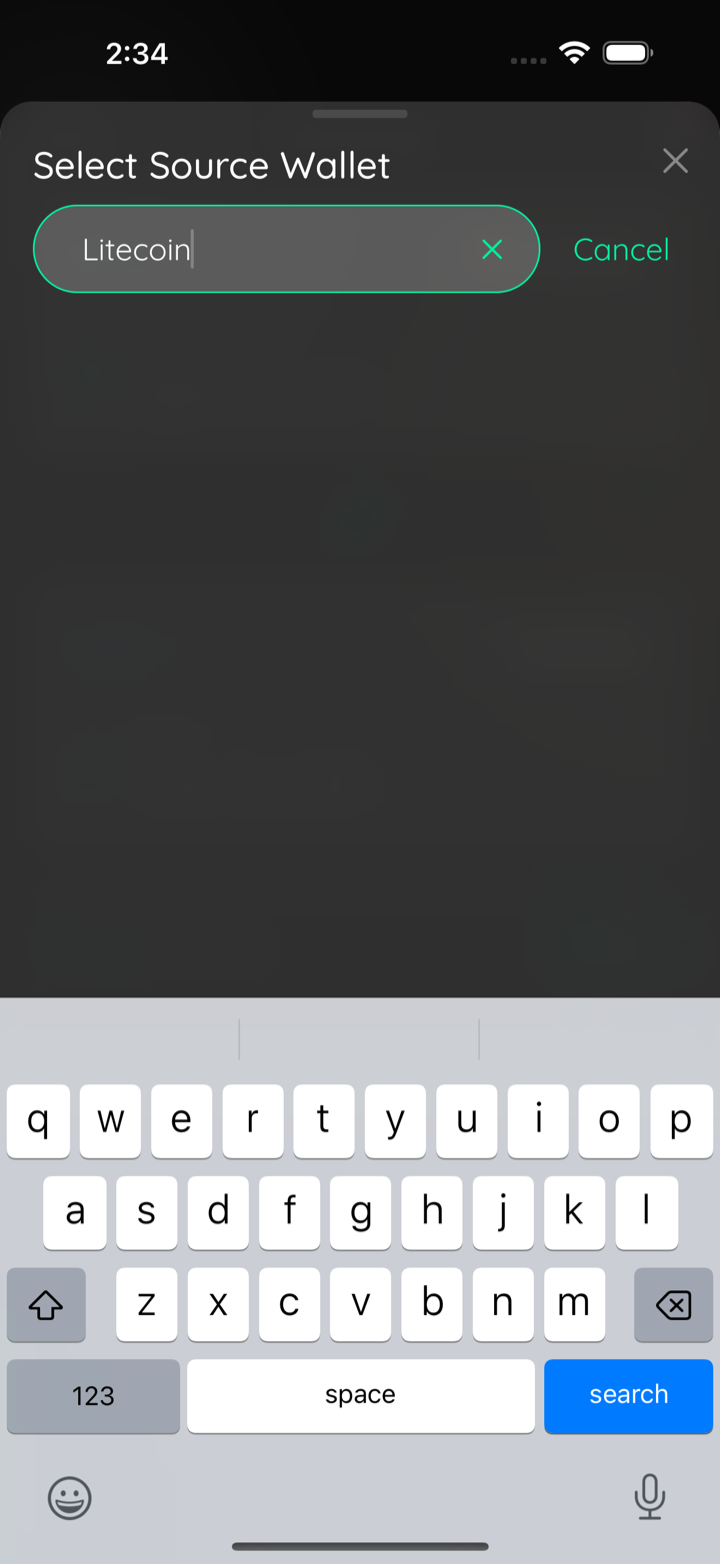

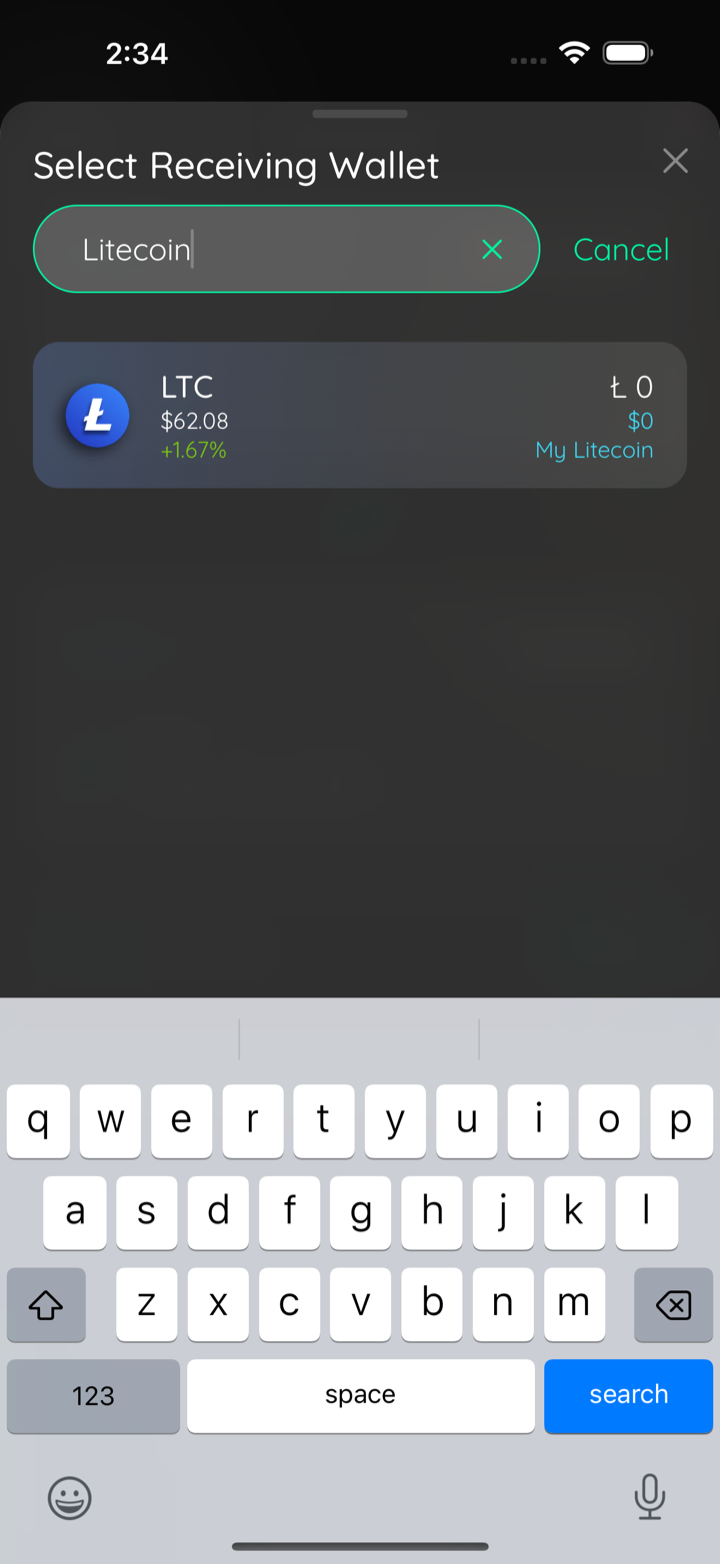

	12. 🪓 send ltc banned source tap toasts reason	13. 🪓 swap from picker leaves out banned ltc	14. 🪓 swap to picker keeps ltc

[chatgpt-codex-connector]

Codex Review Summary

This comment shows the latest Codex review activity on this pull request.

Review	Status	Commit	Review trigger
📝 Code Review	✅ Completed 2026-10-21T08:31:04.063195Z	9a0ecec	PR opened

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

• Open a pull request for review
• Mark a draft as ready
• Comment "@codex review" or "@codex security review".

Codex reacts with 👀 while any review is running, comments if it has suggestions, and reacts with 👍 once all reviews finish with no findings.

[j0ntz]

Self-review before human review (medium).

Fixed before review (2)

• src/components/scenes/SendScene2.tsx:2064: an armed toggle stayed on when the source asset was picked back as the recipient after its quote came back with no private route to itself. Fixed in "Dim the Stealth Send toggle when it cannot arm": the seed also disarms on pairCaps.stealth === false, and the recipient-network test covers it.
• src/components/scenes/SwapCreateScene.tsx:166: the blocked reason was computed before the Houdini list loaded. Fixed in "Dim the Stealth Swap toggle on a blocked pair": it waits for stealthAvailable (the row is hidden until then; nothing visible changes).

Rejected in curation (2)

• src/components/scenes/SwapCreateScene.tsx:193: a blocked pair quotes through the regular providers while Stealth is saved on. Rejected: the task spec sets effective stealth to (override ?? saved) && list loaded && not blocked, and the toggle shows off with the reason. A regular quote matches what the toggle shows.
• src/components/scenes/SendScene2.tsx:2081: reseedStealthRef can latch true. Rejected: a same-key re-pick returns before the flag is set, and a latched flag only runs the seed, which arms only on an eligible pair the visit or saved choice asks for and disarms only on a blocked same-asset pair, both the intended state.

[chatgpt-codex-connector]

💡 Codex Review

Here are some automated review suggestions for this pull request.

Reviewed commit: 9a0ecec667

ℹ️ About Codex in GitHub

Your team has set up Codex to review pull requests in this repo. Reviews are triggered when you

• Open a pull request for review
• Mark a draft as ready
• Comment "@codex review".

If Codex has suggestions, it will comment; otherwise it will react with 👍.

Codex can also answer questions or update the PR. Try commenting "@codex address that feedback".

[cursor]

Cursor Bugbot has reviewed your changes using default effort and found 1 potential issue.

^{❌ Bugbot Autofix is OFF. To automatically fix reported issues with cloud agents, enable autofix in the Cursor dashboard.}

^{Reviewed by Cursor Bugbot for commit 9a0ecec. Configure here.}

[peachbits]

Checked at fd0fda8: tsc clean, full jest 1363/1363, no new eslint warnings. Removing the recipient-change trigger, the new disarm branch, the dimmed prop, or any Swap block check (either side, the bans, the stealth gate) each fails a test. Two gaps on the Send side are inline.

[j0ntz]

Both Send gaps from the inline threads are fixed in c1e58d4. A banned source or destination now dims the Stealth Send toggle with its own reason, and the toggle re-arms once the block clears (recipient change, raising the amount above the private minimum). Two jest tests cover those paths. The Swap per-side ban check is in 728a7c7 with a picker test, and the docs follow in 98f23fb. On the iOS sim: RBTC to itself disarms, a RIF recipient at $5 stays off on the $25 minimum, and $30 arms it again. With a local LTC ban injected (reverted, not committed), Send dims with the LTC reason and the Swap from picker leaves LTC out while the to picker keeps it.

[peachbits]

Re-checked at 98f23fb (same base as round 1). All four round-1 threads are addressed. Removing the cleared-reason trigger, the source-ban arm, or the "from" picker's source bans each fails the test added for it, and getStealthBlockedCurrencyCode reads as asked. tsc clean, full jest 1366/1366, no new eslint warnings.

For the rebase onto develop: two lines this PR adds read strings that EdgeApp/edge-react-gui#6278 removed, lstrings.stealth_send_info in the recipient-network test (:1314) and lstrings.stealth_swap_info in the SwapCreateScene test helper (:525). Both move to stealth_info_1s.

[j0ntz]

Rebased onto develop at the EdgeApp/edge-react-gui#6278 merge (4ee991c). Both strings moved to stealth_info_1s: the recipient-network test now expects the formatted provider line, and the SwapCreateScene helper uses the stealthInfo() helper develop already has. The CHANGELOG conflict kept both Unreleased lines. On the sim against the rebased build, ARRR still shows the toggle dimmed with its reason, and the RIF send re-arms at $30 with the new copy.
